J121

Led Park Light

Streamlined appearance design, simple and fashionable, with independent intellectual property rights.

The lamp body is made of high - pressure die - cast aluminum, which is impact - resistant and has a long service life.

The light - transmitting cover is made of optical - grade PC material, which is resistant to high temperatures and aging.

The light source adopts high - luminous - efficiency LED.

Contact Now WhatsApp

Product Introduction

The creative inspiration of this LED garden light comes from the artistic perception of the "Angel's Eye". The design with a hollow center and circular lighting is simple and stylish. It embodies the most advanced LED lighting technology at present and is a popular style carefully designed for the lighting of gardens, branch roads and squares.

The night - time effect of LED Park Lights

Product Details Display

Details of the die - cast parts of LED Park Lights

To achieve efficient heat dissipation of the LED light source, the aluminum alloy die - cast part at the top of the lamp head is designed with a fin - type heat dissipation structure.

Details of the lamp head fastening screws of LED Park Lights

The lamp head fastening screws are designed to ensure a stable connection between the lamp head and the lamp post. They feature a delicate and high - strength design.

Details of the top maintenance cover of LED Park Lights

To greatly enhance the convenience of disassembly, assembly and maintenance, a uniquely designed switch cover structure is carefully crafted at the top of the lamp head, which significantly simplifies the maintenance operation process.

Product Parameters

The product model	J121A	J121B
Main Type of the LED	Medium Power	------
Main LED Chip Quantity	48pcs	------
Auxiliary Type of the LED	High power	High power
Auxiliary LED Chip Quantity	18pcs	18pcs
Rated Power	80W	45W
Input Voltage	AC220V±20％	AC220V±20％
Frequency Range	50/60Hz	50/60Hz
Power Factor	>0.9	>0.9
CT of the Light Source(k)	3750~4250	3750~4250
Color Rendering Index	≥ Ra70	≥ Ra70
Luminous Efficiency(lm/w)	≥ 90	------
Lifetime	>30000h	>30000h
Operating Temperature	-20℃~+50℃	-20℃~+50℃
Operating Humidity	10%~90%	10%~90%
Protection Grade	IP65	IP65
Diameter of the suitable tube	Φ114mm	Φ114mm
Installation Height	4~8m	4~5m
Weight(kg)	14	9.95
Size of the Package(mm)	1110x430x300	1110x430x300
Standard Color Number of the Lamp: Champagne Gold RZ0-81037D (2195194)

Order type	Height (mm)	Foundation No	Pole section size(mm)	Pole material
J121A/B-G030	4500	B-01	Φ114	Steel
J121A-G031	6000	B-05	Φ114	Steel
J121A-G038/J121-G039	7930	B-05	Φ114/140	Steel

Pictures of light model collocation

Application Scenarios

Customer Feedback

Feedback for our outdoor LED fixture is abundant and affirmative. Users are pleased with the prompt shipping and the highly effective customer service. The product's reliable functionality and excellent illumination are key points of praise. Moreover, its elegant and restrained design is adored for how it improves the ambiance, giving a contemporary and upscale feel to the space.

Packaging and Delivery

From the design of the interior cushioning to the tracking of the shipment, every detail matters. We are fully aware that these details collectively ensure a positive receipt. Our pledge to "safe, efficient, and guaranteed" delivery means we provide a protective custody for your lighting solution.

FAQ

Q To meet the overall lighting environment design of a project, what kind of light-color product matrix can your company provide?

A We have constructed a complete light-color product matrix aimed at supporting integrated lighting design. From low-CCT cozy atmosphere lighting, to medium-CCT efficient task lighting, to high-CCT focus-boosting lighting, the entire product line upholds high color rendering standards (CRI≥Ra70), ensuring visual comfort and color authenticity.

Q When considering the total lifecycle cost of a project, how to evaluate the reliability and lifespan of your products?

A Please focus on our systematic reliability design during evaluation. By integrating high-quality LEDs, patented thermal technology, and rigorously selected drivers, our goal is to minimize product failure rates and translate nominal lifespan (>50,000 hours) into long-term stability in actual use, thereby significantly reducing long-term replacement and maintenance costs.

Q As a systematic engineering aspect, how does your company ensure the effectiveness of heat dissipation throughout the product's lifecycle?

A We have established a full-chain thermal management system covering materials, design, manufacturing, and validation. From selecting high thermal conductivity aluminum to structural design based on fluid dynamics, to precision machining ensuring interfacial contact, and finally closed-loop validation through rigorous reliability testing, ensuring lasting thermal performance.

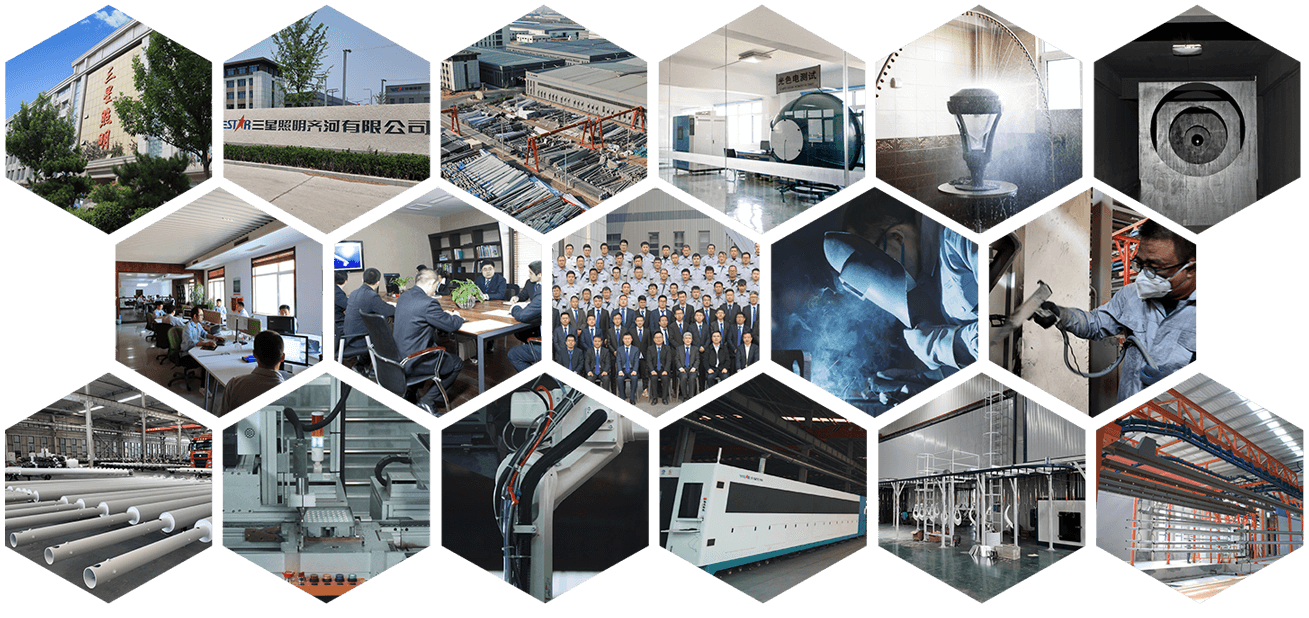

Company Strength

Jinan Sanxing Lighting Technology Co., Ltd. is a national high-tech enterprise specializing in cultural lighting and smart multi-functional poles. With core strengths in scheme design, product R&D and intelligent manufacturing, it provides comprehensive solutions for new-type smart cities across scenarios including smart lighting, smart cultural tourism, smart parks and smart urban management. The company has won honors such as National "Little Giant" Enterprise of Specialized, Refined, Differential and Innovative, Industrial Design Center, Enterprise Technology Center, "Gazelle" Enterprise, as well as Germany’s Red Dot Award, iF Award and China Lighting Award. It has participated in formulating national industry standards like Smart City - General Requirements for Smart Multi-functional Pole Systems. Sanxing Lighting’s products have been successfully applied in key domestic and international projects, including the G20 Hangzhou Summit, Xiamen BRICS Nations Conference, Qingdao SCO Summit, Beijing International Horticultural Exhibition, Beijing Winter Olympics, Hangzhou Asian Games, Xi’an National Games, UN COP15 Conference and the "Belt and Road" project in Nur-Sultan, Kazakhstan. In the future, Sanxing Lighting will further strengthen the leadership of independent innovation and the demonstration role of innovation achievement transformation, uphold the core concept of "customer-centric and continuously creating value for customers", and empower the construction of smart cities.

Company Strength

Certification

We are an enterprise recognized provincially as both a high-tech and gazelle company. Our trophy shelf holds global design awards like Red Dot and iF, as well as domestic lighting successes. A key indicator of our capabilities is our possession of 500+ patents.

Company Services

Our company's hallmark is its ability to deliver through solution design, product development, and smart industrial techniques. Our professional teams create state-of-the-art smart city ecosystems for public lighting, tourism, districts, and governance. We also cater to specific needs with our efficient and bespoke lighting concepts.
